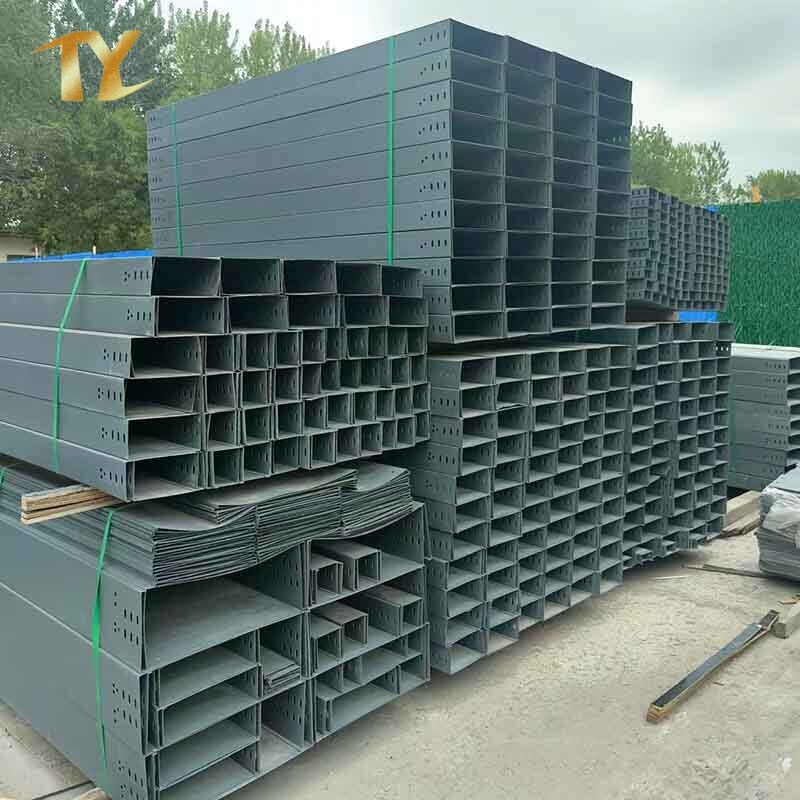

Manufacture Perforated Cable Tray/Wire Mesh Cable Tray/Customized Cable Trays for Building
A cable tray is a type of support system used to secure and organize electrical wiring and cables in both commercial and industrial settings. Typically made from metal, plastic, or fiberglass, cable trays provide a robust structure for cable management, ensuring safety, accessibility, and ease of installation.
+86 17658859108
sdxty@xintuoymetal.com
Contact Us

◉ Key Attributes


Product NameCustom Perforated Cable Tray
MaterialCarbon Steel/ Pre-Galvanized Steel /Stainless Steel/Aluminum Alloy
Product TypeLadder Cable Tray / Channel Cable Tray / Perforated Cable Tray
Surface TreatmentPre-Gal/Electro-Gal/Hot dipped galvanized/Powder coated/Polishing
Width50-1200mm
Side Rail Height25-300mm
Length2000mm,3000-6000mm or Customization
Thickness0.6-3mm,but if you need HDG cable tray, 1.30-3mm thickness is better
ColorAs customer requirements
Transport PackageExport Standard Package, Steel Pallet
SpecificationISO9001/CCC/CE/UL/CUL
OriginShandong, China
Production Capacity10000 Ton Per Year
Delivery Time7-15days
ApplicationWiring system,cable management,hoisting system,construction industry and so on
ServiceFree Consult, Design, Process, Fabrication

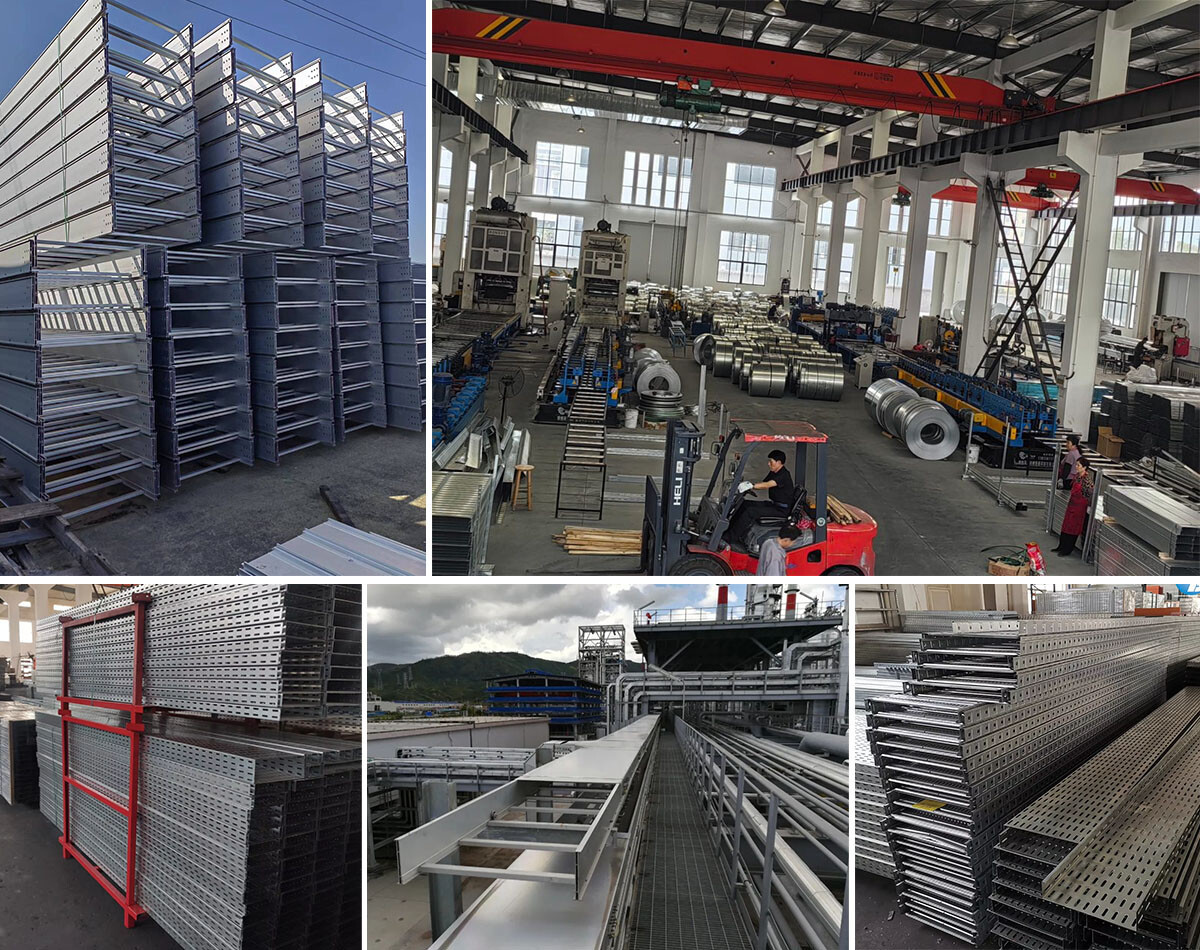

◉ Product Details

Description:

Key Features of Cable Trays:

Material: Common materials include galvanized steel, aluminum, and non-metallic options that resist corrosion and environmental damage.

Types: There are various designs of cable trays, including:

Ladder trays: Resembling a ladder, they provide plenty of ventilation and support for cables.

Perforated trays: Feature holes for air circulation and easier cable fastening.

Solid bottom trays: Ideal for protecting cables from physical damage but less ventilated.

Applications: Used in various settings including office buildings, factories, data centers, and power plants, they help manage power, data, and telecommunication cables.


Benefits:

Organization: Keeps cables neatly arranged, reducing clutter and improving airflow.

Accessibility: Makes it easier to install, maintain, and replace cables.

Safety: Reduces the risk of cable damage and related hazards such as electrical fires.

Overall, cable trays are essential for efficient cable management, enhancing both functionality and safety in electrical and communication systems.





◉ Product Design

A. Customers have drawings

We can provide you the full service of production, shipment and installation guide, which is high quality and low cost. Because we own all kinds of technical facilities, complete test instruments and advanced production processes.



B. No drawings

Our excellent design team will freely design the light steel structure workshops for you. If you give the following information, we will give you a satisfied drawing.

1. Dimension: Length, width, height, eave height

2. Doors and Windows: Dimension, quantity

3. Local Climate: Wind load, snow load, roof load, Seismic load and so on.

4. Insulation materials: Sandwich panel or steel sheet.

5. Crane beam: If you need it, it will be very helpful that you tell us its technological parameters.

6. Use: If you tell us the application of light steel structure workshop, we can exactly design the drawings for you.

7. Other requirements: Such as fire proofing, isolated roof, etc. Please kindly inform us, too.

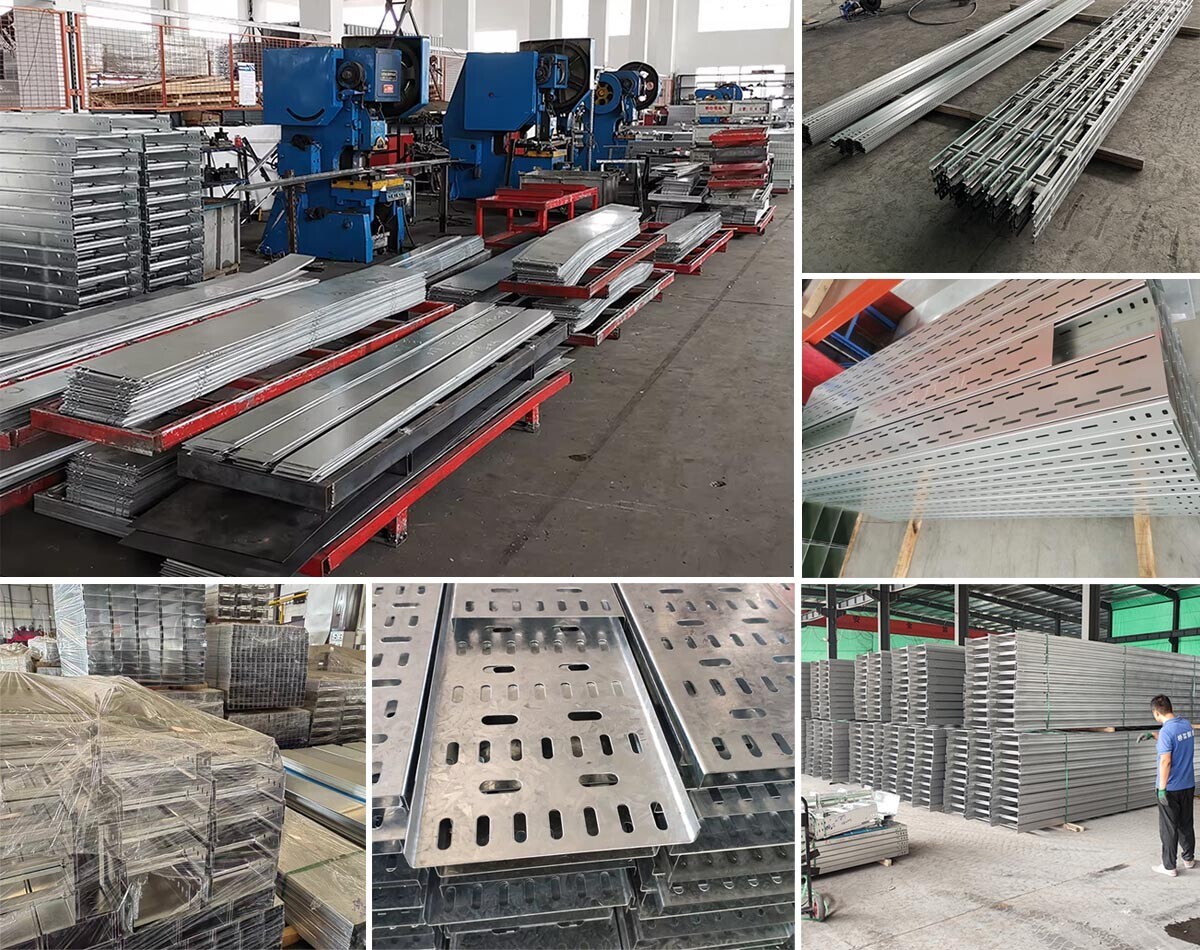

◉ Production Procedure

◉ About Xintuoyuan

Xintuoyuan Steel Buildings are versatile structures designed for a variety of purposes including workshops, warehouses, sheds, hangars, retail shops, riding arenas, administrative offices, homes, garages, and personal storage facilities. Whatever your needs, we have a building solution for you.
Our Steel Structure Buildings are tailored to your specific requirements. They can be customized to include features such as cranes, mezzanines, partitions, canopies, or can be integrated into existing structures to provide additional storage space. We offer a range of accessories including windows, man doors, louvres, light-transmitting wall panels, liner panels, and insulation.
These Prefabricated Steel Buildings are not only easy to assemble but also energy-efficient, visually appealing, cost-effective in the long run, and can be shipped in as little as 4 weeks. Our team of engineers and staff are always available to assist with complex projects.
Our steel structure buildings offer a flexible layout, low foundation cost, and can be designed according to the buyer's specific requirements.
As a leading steel structure supplier in China, Xintuoyuan warmly invites customers to visit us and build strong, long-term partnerships.

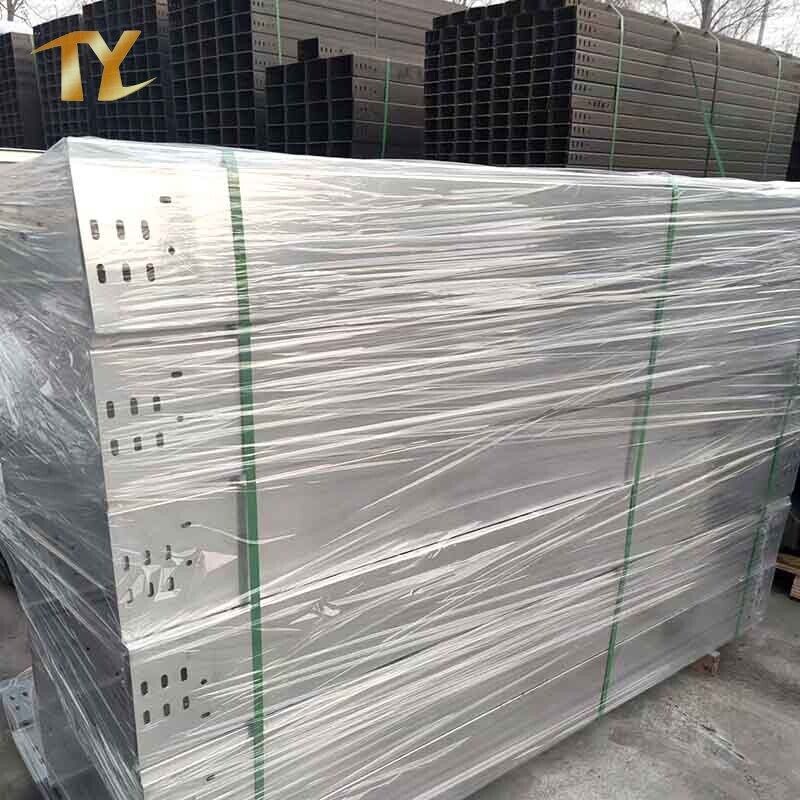

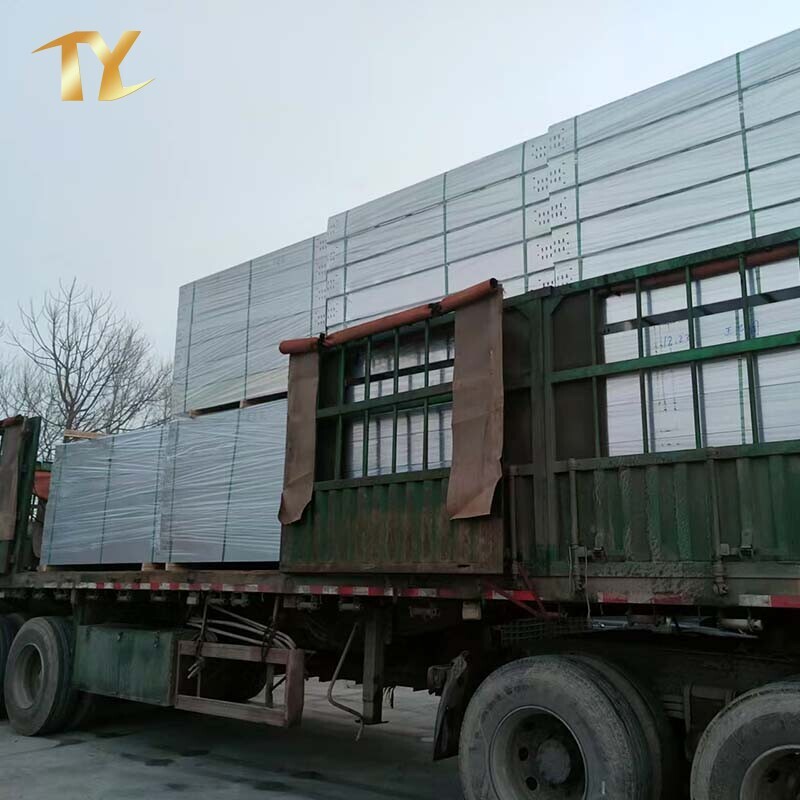

◉ Product Package

◉  Product Video

◉ Online Consultation

Reliable detection!

We accept formal third-party testing institutions for testing, we can also send samples to you free of charge, customer satisfaction shopping experience is always our pursuit
